Automated welding carriage
Pail Pack System
Welding Wire Cabinet

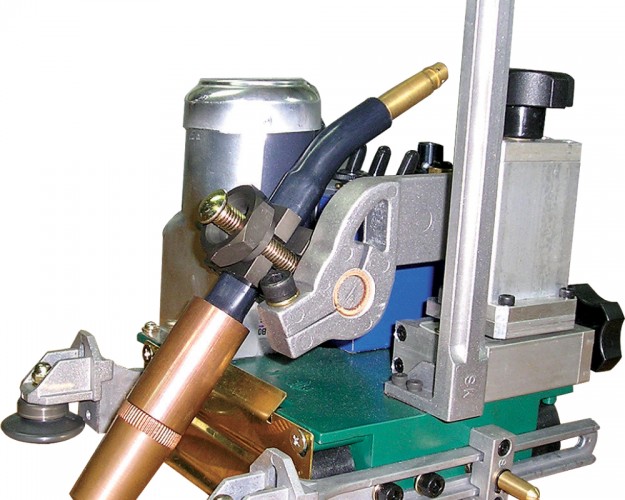

[ Fillet Carriage ] MINI-V ULTRA LIGHT CARRIAGE
1. Micro, Ultra-Light automatic welding Carriage
2. Work in narrow areas or sophisticated operation for multi-purpose welding
3. No additional movable rail is required with this model
4. Designed accommodate everyone, offering maximum efficiency.

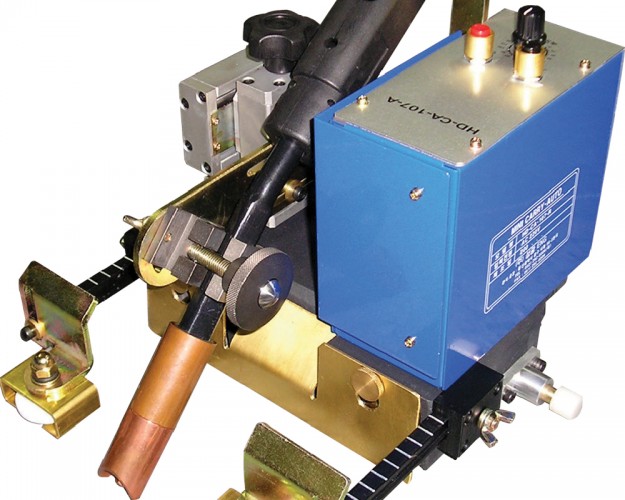

[ Fillet Carriage ] SK-107A HATCH COAMING CARRIAGE
1. Durable, horizontal fillet auto welding carriage
2. Well traveling under the weight of 30kg by 6W driving motor
3. It can run on the walls, the upside and multipurpose
4. To stop sensor to be established to both directions welding possibility.
5. Torch angle can be adjusted while welding
[ Fillet Carriage ] SK-2A 2POLE CARRIAGE
1. Automatic horizontal fillet welding on both side of the stiffener
2. Precise display of travel speed
3. The stop sensor to be established to both direction, the both direction welding possibility
4. Because this drives at constant speed through microprocessor control, this has the excellent effect for quality when welding the curved joint
[ Fillet Carriage ] SK-107-A2 TANDEM CARRIAGE
1. Automatic welding Carriage exclusively designed for CO2 tandem welding on horizontal fillet welding application
2. Two welding torches are simultaneously welding at preset arc distance with high speed, suitable for thick plate fillet welding
3. Precise display of travel speed
4. Microprocessor control provides constant travel speed which contributed to improve welding quality

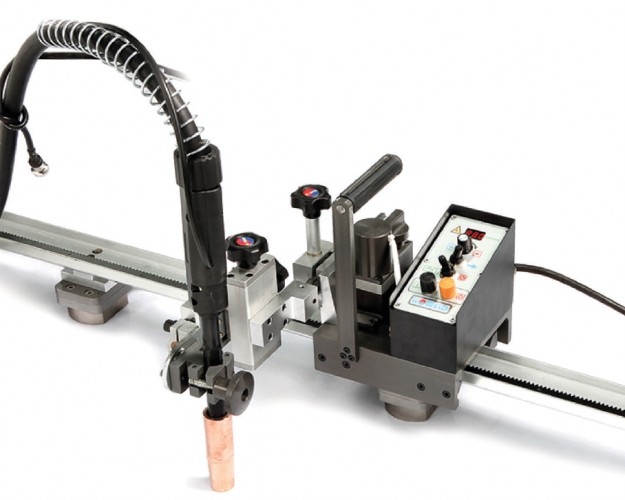

[ Mini Rail Carriage ] SK-201 MINI RAIL AUTO CARRIAGE
Butt/Fillet, muti-welder driving on the rigid aluminum rail
1. Magnet On-Off switch type rail offers in-line adjustment easily.
2. Minimized gear backlash offers various constant speed / adjustable controls precisely thus the highest quality welding and a long life by means of a Special Motor with a Reducer.
3. Crate fill at the beginning and end of welding.
[ Mini Rail Carriage ] SK-100C MINI RAIL AUTO CARRIAGE
Butt / Fillet weaver for multi welder/position and driving on the aluminum rigid rail and easy to control by local panel and remote controller.
1. Touch sensors stop carriage travel and welding while activating.
2. Weaver controls the width and can get weaving width as wanted and quality welding.
3. Minimized gear backlash offers various constant speed / adjustable controls precisely thus the highest quality welding and a long life by means of a Special Motor with a Reducer.
1. Modular design and can be used with any type of welding equipment.
2. Light weight, small size and simple operation.
3. Digitally controlled the weaving width, weaving center shitf, right/left/center dwell and weaving width, weaving pattern.
4. Automatic return of the torch position to the center of weaving stroke at every weld stop.
5. Free input voltage(95~250V) with built in SMPS, and the possible change of the input voltage during welding will not influence the Carriage performance.

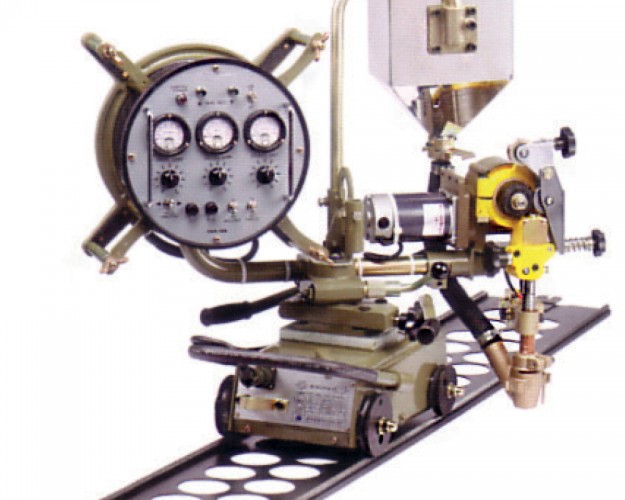

1. Stable welding with IC+Thyristor control method.
2. Excellent in hardness and strong property
3. Efficient in operation with Panel concentration system
4. Efficient in welding by using high Current of 300A ~ 1,500A
5. Smooth wire feeding by using strong Wire Feeding Motor
